Centered Axle Panhard OD Trail Gear

Description

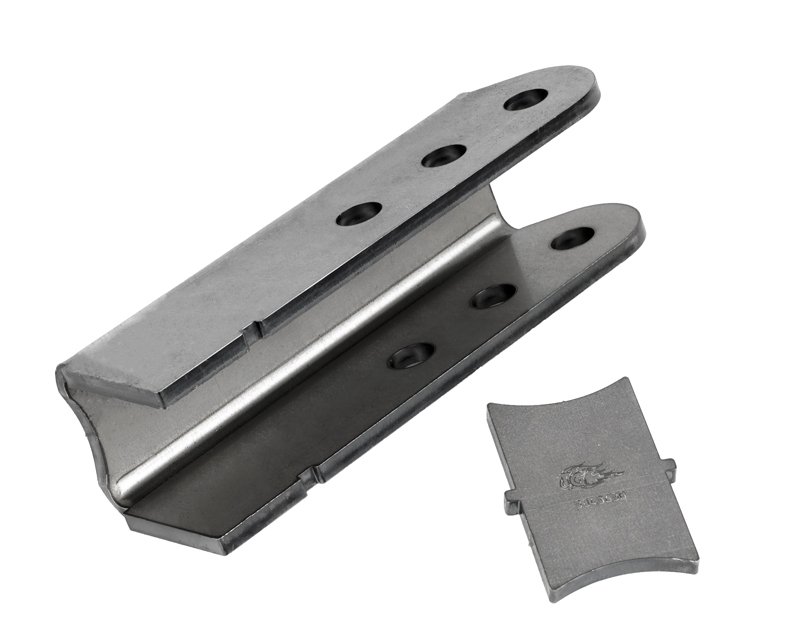

Centered Axle Panhards These axle mounted panhard brackets are laser cut and formed in our own facility. This is our centered version for 3.0 Inch and 3.5 Inch axles. Also available in an offset from axle center version. The mounting holes are 0.5625 Inch and have 1.5 Inch spacing giving you 3.0 Inch of mounting adjustment.

These brackets are shipped unfinished and unwelded giving you the freedom to trim or adjust the bracket as desired. This bracket was designed to work with 0.75 Inch rod ends using misalignment spacers with an inside width of 1.75 Inch and a 0.5625 Inch through-hole. Comes with a weld-on reinforcement plate to strengthen bracket. Not designed for use with High Steer.
Specs:

• Warranty: 12 Month Limited Warranty
• Sold As: Each
• Material: Metal
• Finish: Bare
• Color: Grey
• Outer Diameter: 3.5 Inch
• Location: Front and Rear
• Fits: Universal
